Heated Platen Press

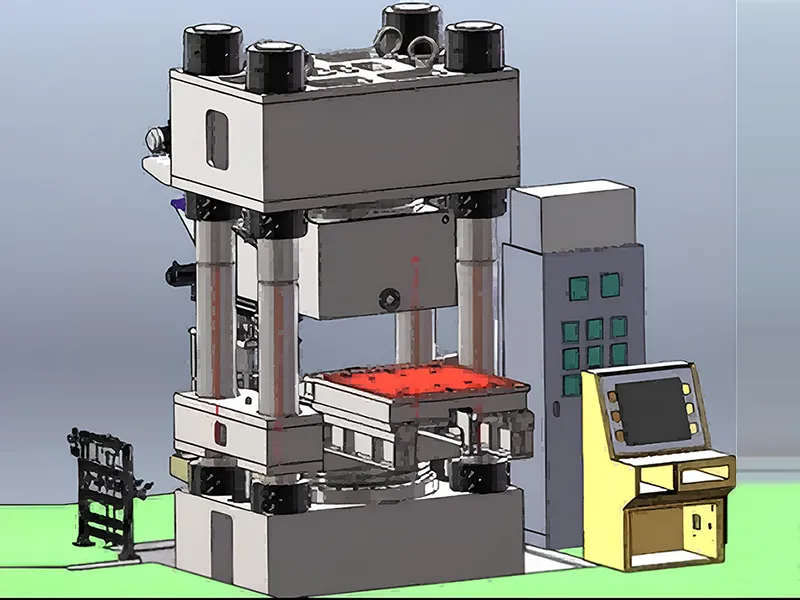

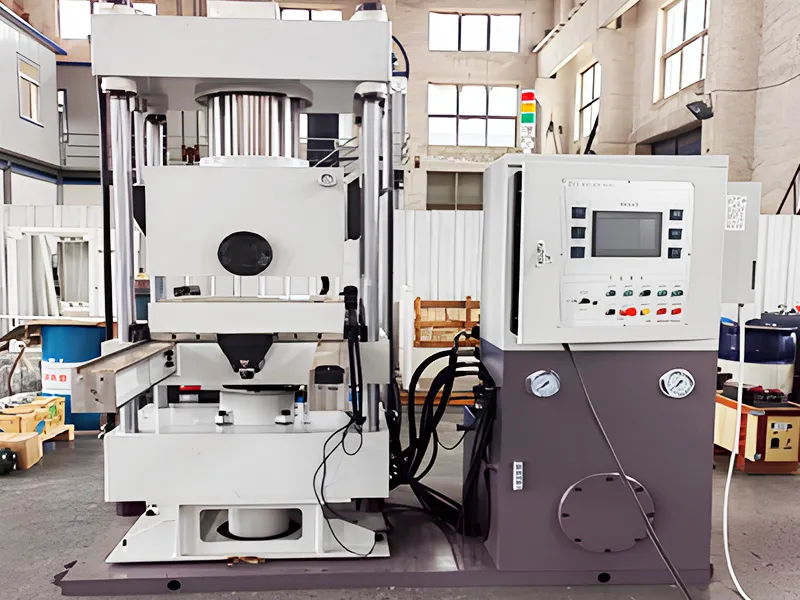

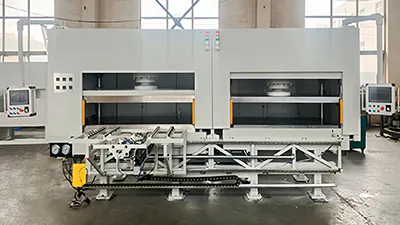

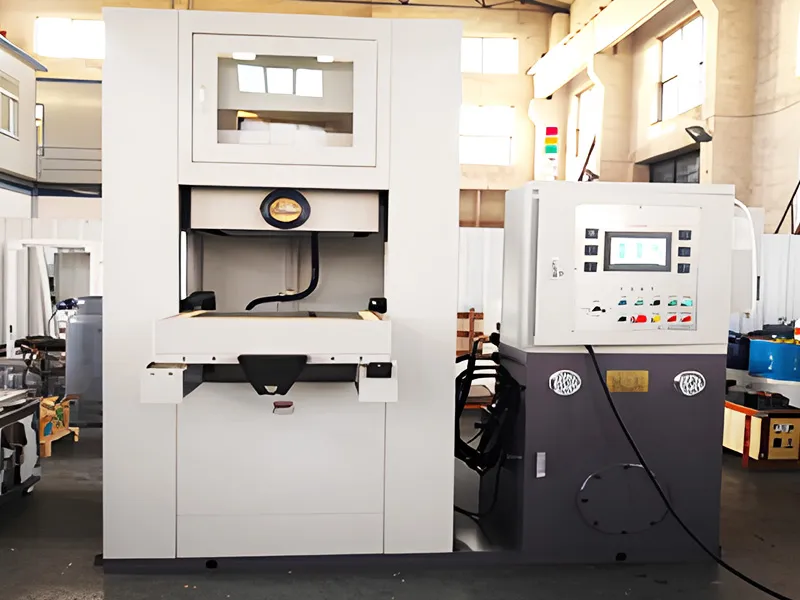

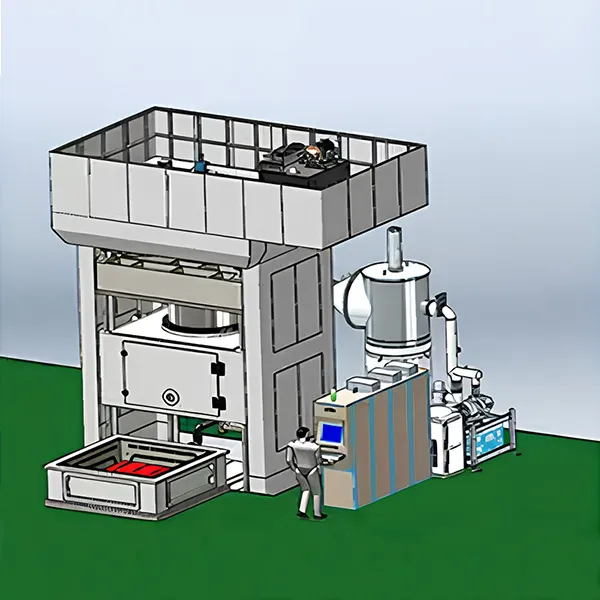

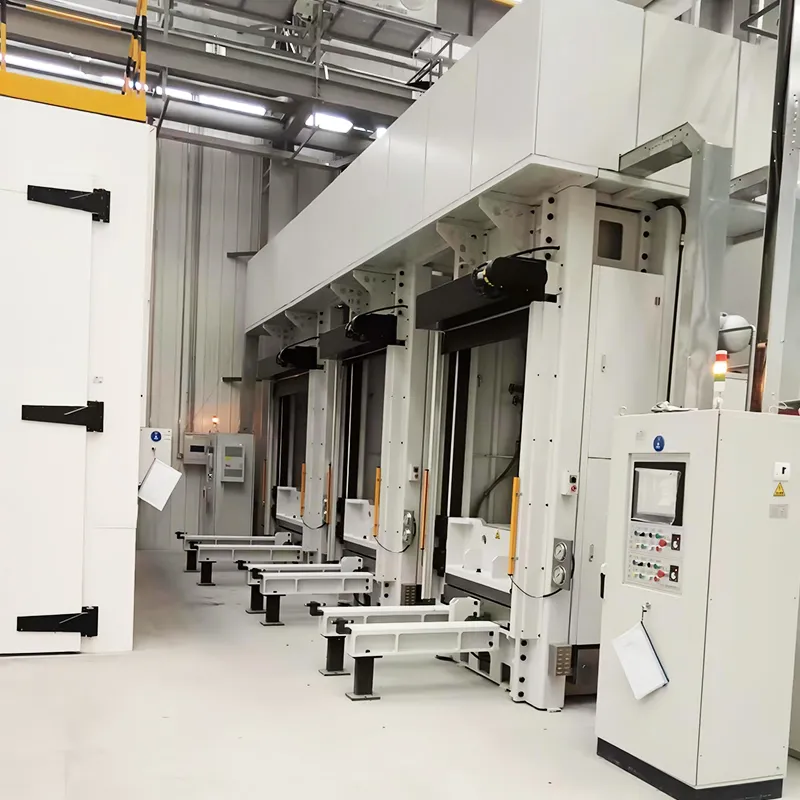

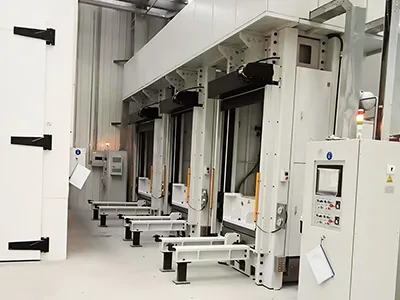

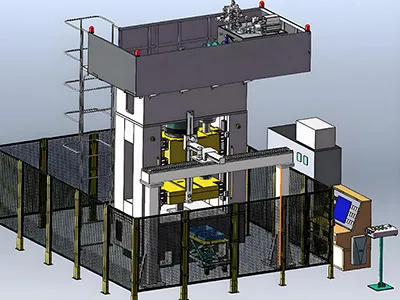

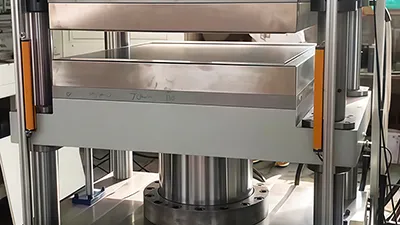

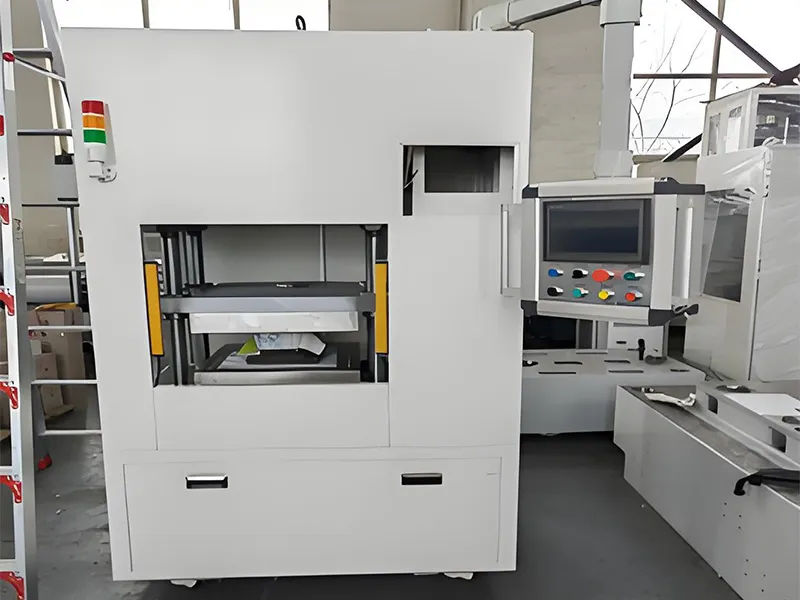

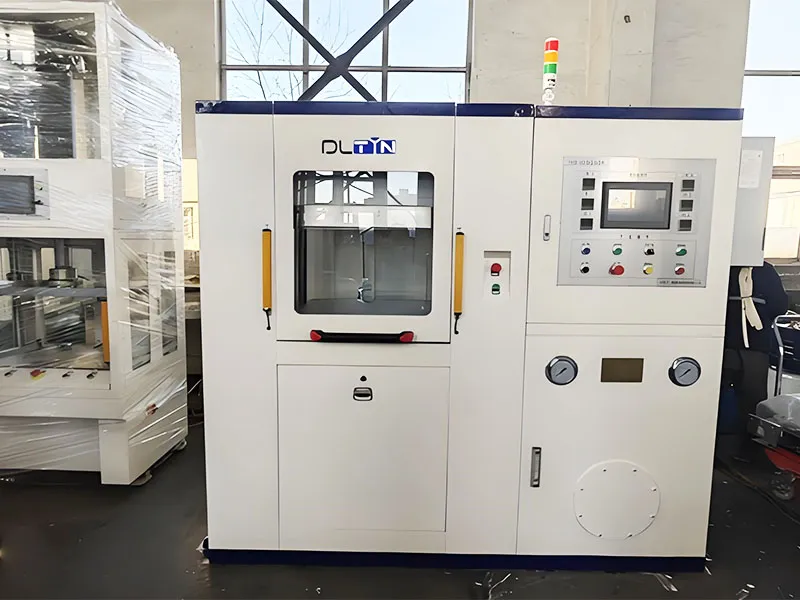

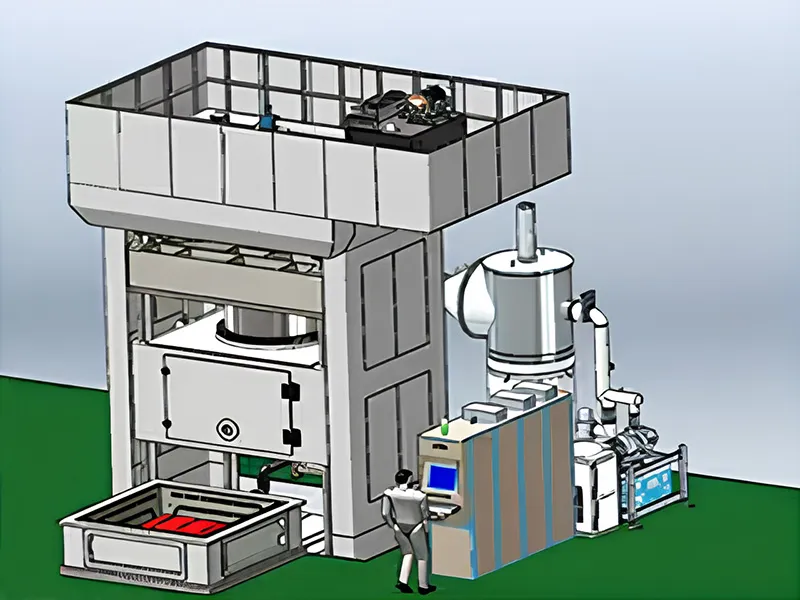

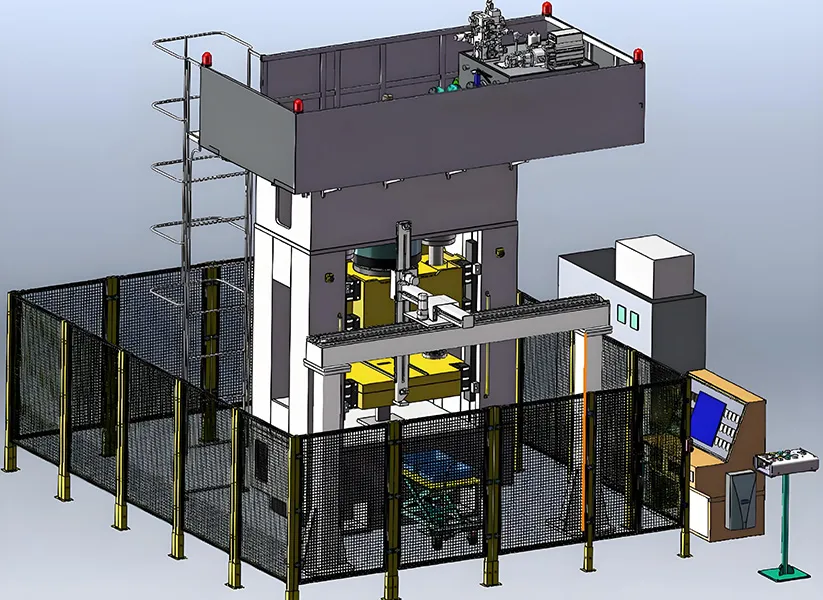

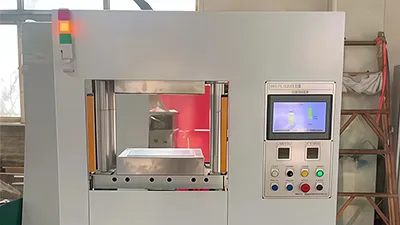

Heated Platen Press (Vacuum Hot Press)

Designed for precision thermoforming under vacuum, the heated platen press is ideal for shaping advanced materials such as carbon fiber, fiberglass, graphite, and various high-performance alloys and polymers that are not able to be produced using melting techniques.

Commonly used for manufacturing carbon fiber phone casings, fiberglass panels, and graphite components, the vacuum hot press also supports the hot forming of titanium and aluminum alloys, SMC materials, engineering plastics, and high-precision rubber parts. The vacuum hot press offers several benefits over traditional sintering or hot-pressing methods conducted in normal atmospheres, by ensuring minimal oxidation, minimized contamination, and improved surface quality.

Request a Quote
Heated Platen Press
Heated Platen Press
Heated Platen Press
Heated Platen Press
Heated Platen Press
Heated Platen Press
Heated Platen Press
Specifications
Model Unit TYNSF 50T TYNSF - 100T TYNSF - 150T TYNSF - 200T TYNSF - 250T TYNSF - 300T TYNSF - 500T
Nominal force kN 500 1000 1500 2000 2500 3000 5000
Max. stroke of upper heating platen mm 400 400 400 400 400 400 400
Max. open daylight mm 500 500 500 550 550 650 650
Max. stroke of moving table mm 600 800 1000 1000 1000 1000 1000
Effective area of heating platen F-B mm 400 500 600 650 650 720 1000
L-R mm 400 500 600 650 650 720 1000
Max. temperature ℃ 950 950 950 950 950 950 950
Number of temperature controlled heating zones Zones 9 9 9 9 9 9 9
Max stroke of vacuum cover mm 300 300 300 300 300 350 400
Ultimate vacuum Pa 0.49 0.49 0.49 0.49 0.49 0.49 0.49
Technical Overview

The heated platen press integrates heating, pressure holding, pressure compensation, and vacuum extraction into a single system. In a vacuum environment, the material is heated to the required temperature, then compressed by the upper and lower platens to achieve material densification, impurity removal, and improved part uniformity.

The hot press system is equipped with a servo closed-loop control system, providing energy efficiency, low noise, and precise pressure regulation. Its PLC-based programmable control allows for multi-stage pressure and multi-segment stroke settings, making it ideal for applications that require frequent adjustments to forming parameters or variable processing conditions.

Heated Platen Press
Features of Heated Platen Press
  • Maintains stable vacuum levels at high temperatures with excellent airtightness and long service life.
  • Heating platens feature precise multi-zone regulation for uniform heat distribution.
  • Maintains stable temperatures from 100°C to 550°C for long-term forming needs.
  • Thermal insulation system keeps the exterior surface below 50°C, enhancing operator safety.
  • Advanced insulation materials minimize heat loss and ensure efficient energy use.
  • Includes Siemens control system for temperature mapping and real-time detection of heating element faults.
  • Supports both manual and automatic modes via an integrated HMI.
  • Provides effective and high-performance water cooling for consistent thermal control.
  • All process parameters are recorded for traceability and quality assurance.
  • Ensures secure and efficient die changes.

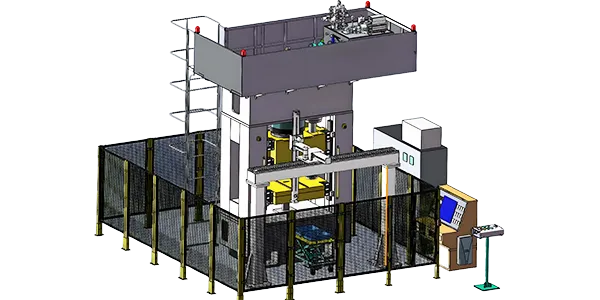

  • Equipped with automated robotic arms for material handling, improving efficiency and reducing manual labor.
