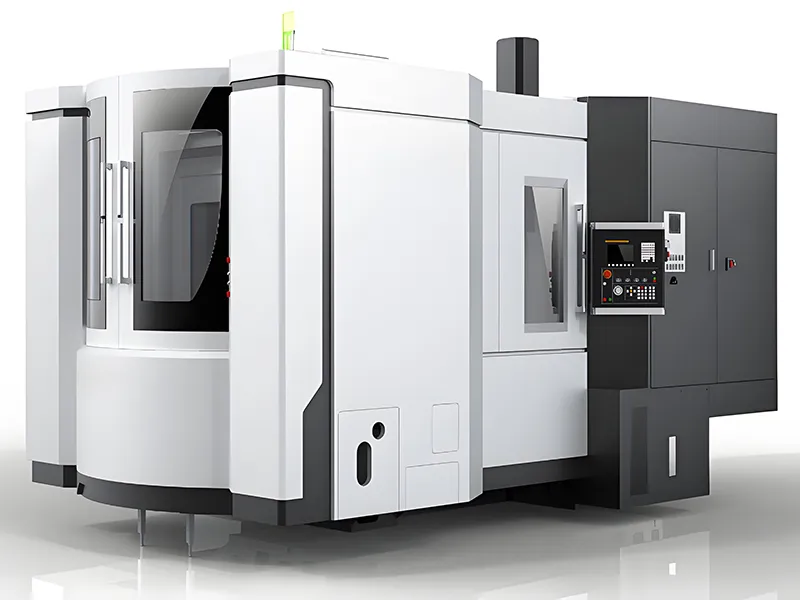

CNC Horizontal Machining Center (HMC)

CNC Horizontal Machining Center (HMC)

Capable of milling, boring, drilling, reaming, tapping and other complex machining operations on four faces of workpieces

The CNC horizontal machining center is designed for multi-face precision machining, capable of performing milling, boring, drilling, reaming, tapping, and other complex operations on four sides of a workpiece in a single setup. Widely used in defense, aerospace, automotive, mold making, and general machinery manufacturing, this HMC is ideal for machining box-type parts, housings, discs, and irregular-shaped components. With its horizontal spindle orientation and rotary worktable, the machining center supports multi-process operations with high precision and production efficiency, especially for parts requiring tight tolerances and reduced setups.

Request a Quote
Specifications
Model HMC400 HMC500 HMC630 HMC800 HMC1250
Table size (L×W) (mm) 400×400 500×500 630×630 800×800 1250×1250
Max. load capacity of table (kg) 400 800 1300 2000 3000
Indexing table 1°×360° 1°×360° 1°×360° 1°×360° 1°×360°
X/Y/Z axis travel (mm) 630/620/710 780/750/800 1050/900/900 1400/1100/1050 1700/1400/1240
Rapid travel (m/min) 60 54 54 45 45
Spindle speed (rpm) 10000 8000 8000 8000 6000
Tool shank type BT40 BT50 BT50 BT50 BT50
Magazine capacity (tools) 40 40 40 40 40
Tool change time (s) 1.2 (Tool to Tool)
3.4 (Chip To Chip)		 2 (Tool to Tool)
4.2 (Chip To Chip)		 2 (Tool to Tool)
4.2 (Chip To Chip)		 2.5 (Tool to Tool)
6 (Chip To Chip)		 2.5 (Tool to Tool)
6.2 (Chip To Chip)
Max. tool weight (kg) 8 25 25 25 25
Max. tool diameter (mm)  Ø82/Ø150 (w/o adjacent tools) Ø115/Ø270(w/o adjacent tools) Ø115/Ø270(w/o adjacent tools) Ø115/Ø270(w/o adjacent tools) Ø115/Ø270(w/o adjacent tools)
Max. tool length (mm) 350 500 500 500 500
Number of shuttle table 2 2 2 2 2
Table change time (s) 5 6 12 12.5 35
Positioning accuracy 0.008 0.008 0.01 0.01 0.015/0.012/0.012
Repeatability 0.005 0.005 0.006 0.006 0.007
Machine weight (kg) 8000 14000 18000 24500 32500
Dimensions (mm) 5952×2522 4891×3200 5145×3342 6153×3717 6087×8075
Features of CNC Horizontal Machining Center (HMC)
High Precision

All X, Y, and Z axes are equipped with hollow-core cooling ball screws, effectively reducing thermal deformation during high-speed motion. Integrated temperature compensation uses thermal sensors placed at key structural points to automatically adjust axis positions, ensuring consistent machining accuracy.

High Speed

The machining center features a built-in motorized spindle with a top speed of 12,000 rpm and two-stage internal gear shifting, supporting both low-speed cutting and high-speed finishing. High-rigidity linear guideways on all axes allow rapid feed rates up to 60 m/min. The dual-arm automatic tool changer enables quick tool swaps in just 2 seconds, maximizing efficiency.

Structural Stability

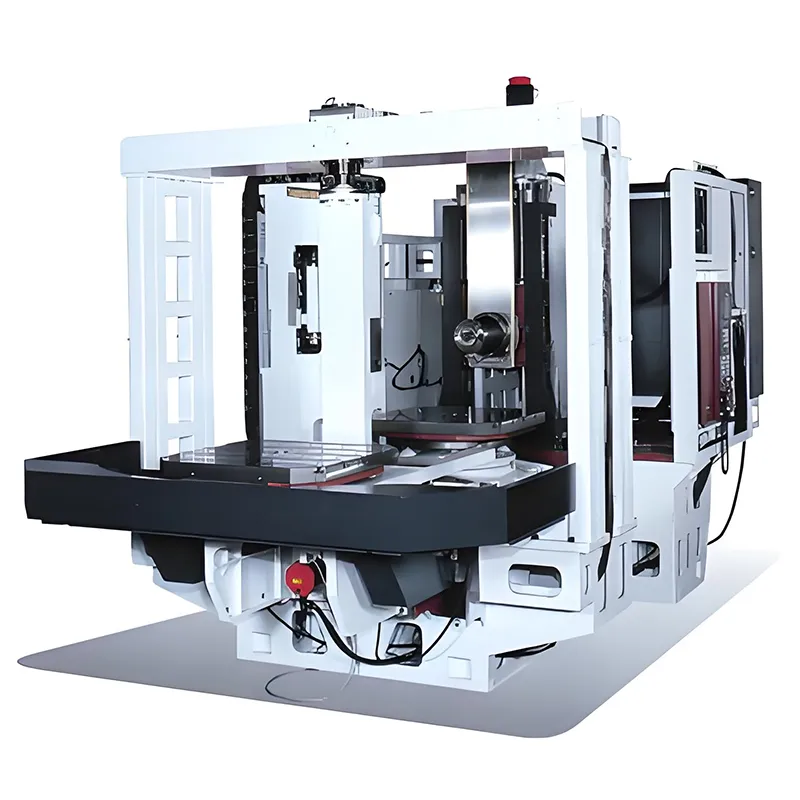

The entire machining center base is constructed from resin-sand castings, with a one-piece casting for the bed. The column, saddle, and table move on this rigid foundation, while the rotary worktable and ATC mechanism are fixed to the machine body that enhances its structural integrity. Finite element analysis (FEA) during the design phase ensures optimal load distribution and vibration resistance.

Core Component Features
High-Speed Motorized Spindle

Integrated two-stage transmission supports both low-speed torque machining and high-speed finishing with maximum stability.

Ball Screw with Hollow Cooling System

Advanced hollow-core ball screws on all axes reduce thermal distortion, significantly enhancing machining accuracy.

Temperature Compensation System

Built-in thermal sensors and real-time software compensation improve precision under varying operating conditions.

High Feed Rates

Rapid traverse speeds of 60 m/min shorten cycle times and increase overall productivity.

Fast Tool Change

Dual-arm automatic tool changer enables reliable tool swaps in just 2 seconds, reducing idle time.

One-Piece Cast Base with Fea-Optimized Structure

The machine base is made from a single casting. Finite element analysis during the design process ensures improved rigidity, minimized vibration, and structural balance under load.

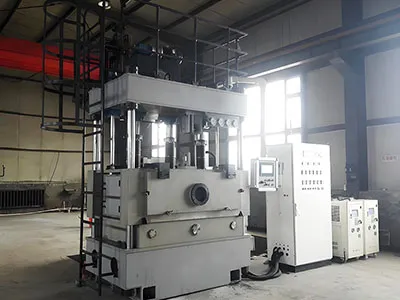

Related Forming Machines
