CNC Vertical Machining Center (VMC)

CNC Vertical Machining Center (VMC) Solutions

Versatile for milling, boring, drilling, reaming, tapping and other complex machining tasks
CNC Vertical Machining Center (VMC)

CNC Vertical Machining Center (VMC)

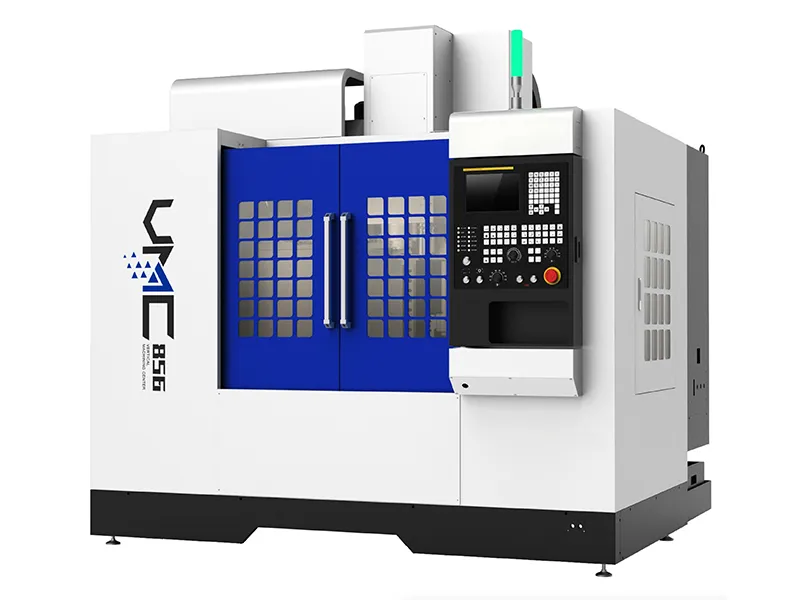

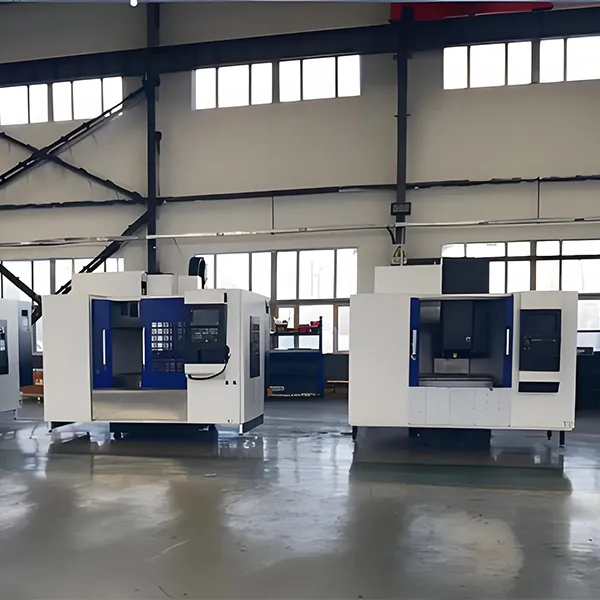

The CNC vertical machining center is a high-performance, multi-function machining system designed for complex part manufacturing across a wide range of industries, including automotive, mold making, mechanical components, 5G communications, and medical devices. Capable of performing milling, boring, drilling, reaming, and tapping in a single setup, this vertical machining center enhances precision, reduces cycle times, and streamlines multi-process operations. With features like automatic tool change (ATC), automated lubrication, cooling, and chip removal, the system supports high-reliability, high-efficiency and accurate machining in both prototyping and volume production environments.

Request a Quote
Core Functional Components

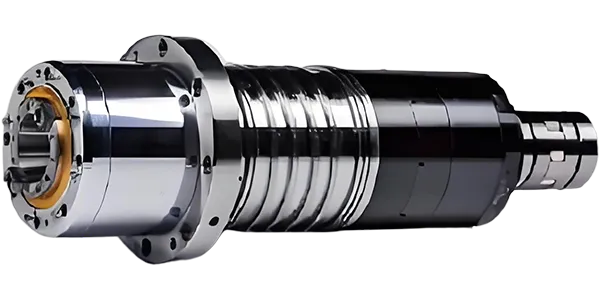

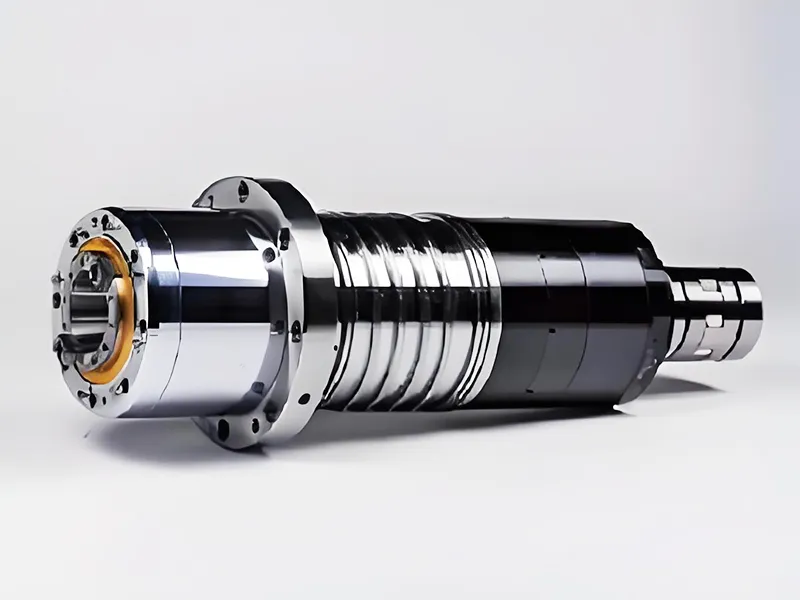

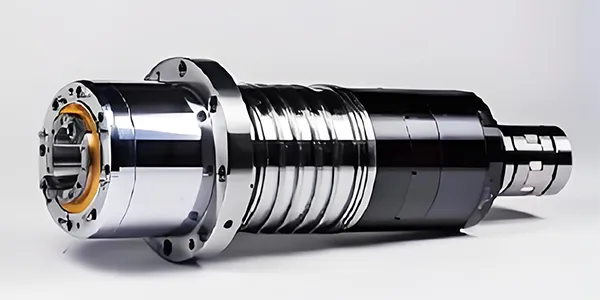

Spindle
Equipped with a 12,000 rpm direct-drive spindle, with optional 8,000 rpm belt-driven configuration.
Central air-blow system keeps the tool holder clean, enhancing machining precision.
Air-mist protection prevents dust and moisture from entering the spindle bearings, preserving lubrication and significantly extending spindle service life.
Spindle balance is calibrated using IRD dynamic balancing equipment, reducing vibration and preventing resonance during high-speed operation—ensuring consistent cutting accuracy.
Spindle
Tool magazine

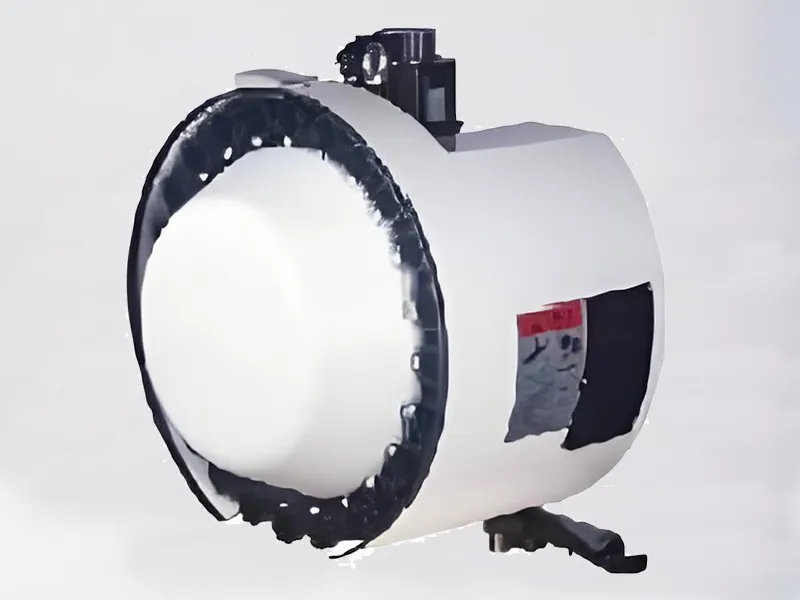

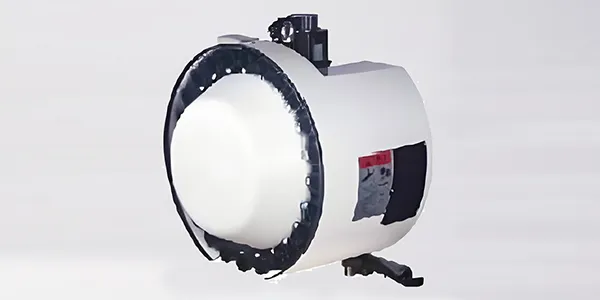

Automatic Tool Changer
Tool magazine with a standard capacity of 24 tools, upgradeable to 32 tools.
Features dual-roller bearings, pneumatic self-locking, dual-stage positioning, and sealed waterproof design for higher stability.
Achieves rapid tool change in just 2.5 seconds, boosting production efficiency and minimizing downtime.
Tool magazine
Specifications
Model unit VMC645 VMC856 VMC960 VMC1165 VMC1370 VMC1580
X/Y/Z axis travel mm 600/450/450 820/550/600 900/600/700 1100/650/600 1300/700/700 1500/800/700
Spindle nose to table surface mm 135-585 130-730 130-830 130-730 120-820 150-850
Spindle center to column track mm 488 640 640 710 770 900
Table size (L×W) mm 700×420 1000×550 1000×550 1200×600 1400×700 1700×800
Max. load capacity of table kg 250 600 600 800 800 1200
T-slot (number×width×pitch) mm 3×14×125 5×18×100 5×18×100 5×18×100 5×18×125 5×18×140
Guideway type 　 Linear ball guideway Linear roller guideway
X/Y/Z axis rapid travel m/min 48/48/48 48/48/48 48/48/48 36/36/36 36/36/36 24/24/20
Max. cutting feed rate mm/min 1-10000 1-10000 1-10000 1-10000 1-10000 1-10000
Spindle speed rpm 12000 12000 12000 12000 12000 6000
Spindle (model/diameter) 　 BT40/120 BT40/155 BT40/155 BT40/155 BT40/155 BT50/190
Spindle drive 　 Direct connection Belt
Spindle motor power kW 7.5/11 7.5/11 7.5/11 11/15 11/15 15/18.5
Spindle torque N.m 35.8/70 35.8/70 35.8/70 52.5/95 52.5/95 95.5/118
Magazine capacity Pcs 24 24 24 24 24 24
Max. tool diameter mm 80/160
(w/o adjacent tools)		 110/225
(w/o adjacent tools)
Max. tool length mm 300 300 300 300 300 350
Max. tool weight kg 8 8 8 8 8 20
Tool change time (Tool to Tool) sec 2.5 2.5 2.5 2.5 2.5 3.5
X/Y/Z positioning accuracy mm 0.008/0.008/0.008
X/Y/Z Repeatability mm 0.005/0.005/0.005 0.006/0.006/0.006
CNC system 　 FANUC. 0i-MF PLUS(S) FANUC 0i-MF PLUS(5) FANUC 0i-MF PLUS(1)

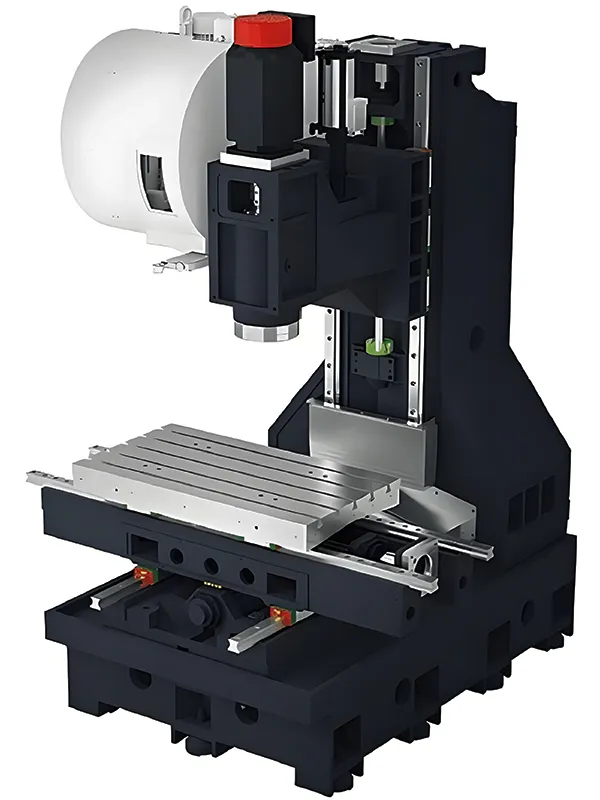

High-Rigidity Structural Design
High-Rigidity Structural Design

The CNC vertical machining center features a structurally optimized design, developed using finite element analysis (FEA) to ensure excellent stability and machining accuracy. This ensures the entire machine maintains high rigidity and machining precision under demanding conditions. Key structural advantages include:

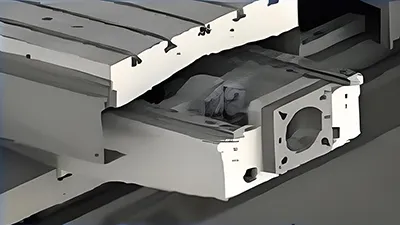

Integrated motor base: Reduces elastic deformation and enhances drive rigidity for improved motion stability.

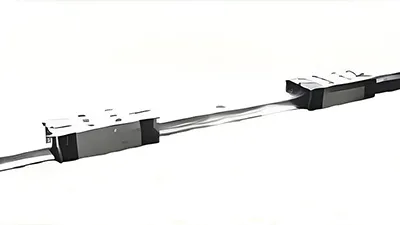

High-precision roller guideways (P-class): Provide excellent load-bearing capacity and reduced elastic deformation during heavy-duty cutting.

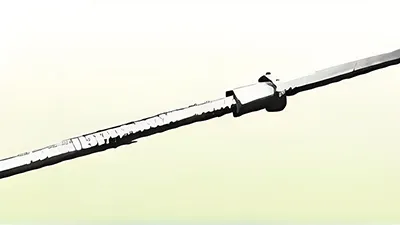

C3 grade precision ball screws: Preloaded ball screw assemblies significantly improve transmission rigidity and minimize thermal deformation during rapid movements, ensuring machining accuracy.
Ultra-stable base structure: A wide-span, V-shaped column and monolithic bed frame minimize deflection during high-speed operations, delivering superior overall rigidity and vibration resistance.
  • Motor Motor
  • Guidew Guidew
  • Ball Screws Ball Screws
